Please send RFQ , we will respond immediately.

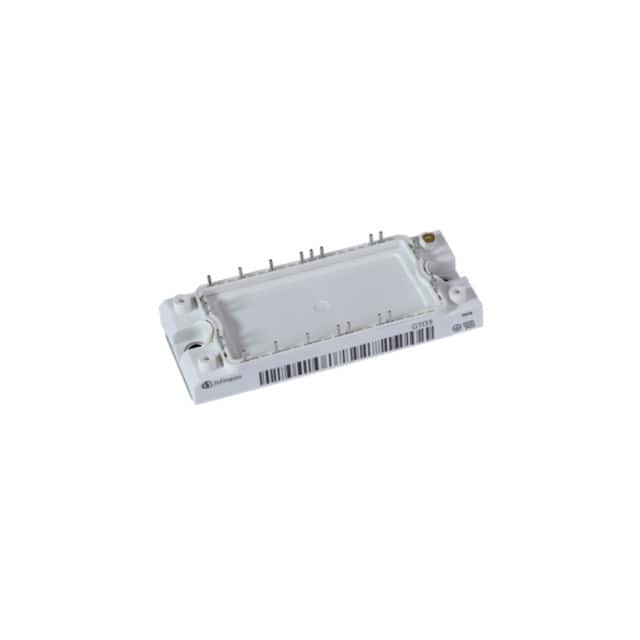

| Part Number | FP25R12KT3BOSA1 | FP25R12KT3BPSA1 | FP75R12KT3BOSA1 | FP25R12KT4BOSA1 | FP15R12KT3BOSA1 | FP25R12KE3BOSA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| IGBT Type | - | - | Trench Field Stop | Trench Field Stop | - | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 40 A | 40 A | 105 A | 25 A | 18 A | 40 A |
| Power - Max | 155 W | 105 W | 355 W | 160 W | 83.5 W | 155 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 25A | 2.15V @ 15V, 25A | 2.15V @ 15V, 75A | 2.15V @ 15V, 25A | 2.45V @ 15V, 10A | 2.15V @ 15V, 25A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 1 mA | 1 mA | 5 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 1.8 nF @ 25 V | 1.8 nF @ 25 V | 5.3 nF @ 25 V | 1.45 nF @ 25 V | 600 pF @ 25 V | 1.8 nF @ 25 V |
| Input | Standard | Three Phase Bridge Rectifier | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 150°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | AG-ECONO2-8 | Module | Module | Module | Module |
