Please send RFQ , we will respond immediately.

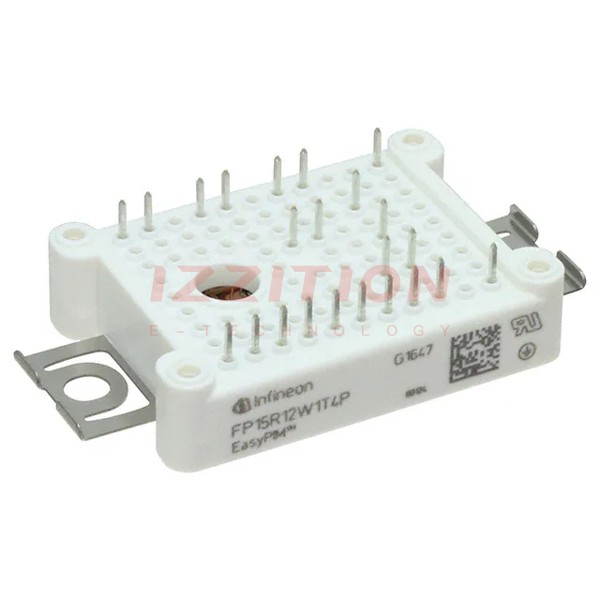

| Part Number | FP15R12W1T4PBPSA1 | FP15R12W1T7PBPSA1 | FP10R12W1T4PBPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 30 A | 15 A | 20 A |
| Power - Max | 20 mW | 20 mW | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 15A | - | 2.25V @ 15V, 10A |
| Current - Collector Cutoff (Max) | 1 mA | 3 µA | 1 mA |
| Input Capacitance (Cies) @ Vce | 890 pF @ 25 V | 2.82 nF @ 25 V | 600 pF @ 25 V |
| Input | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 175°C (TJ) | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | AG-EASY1B | Module |
