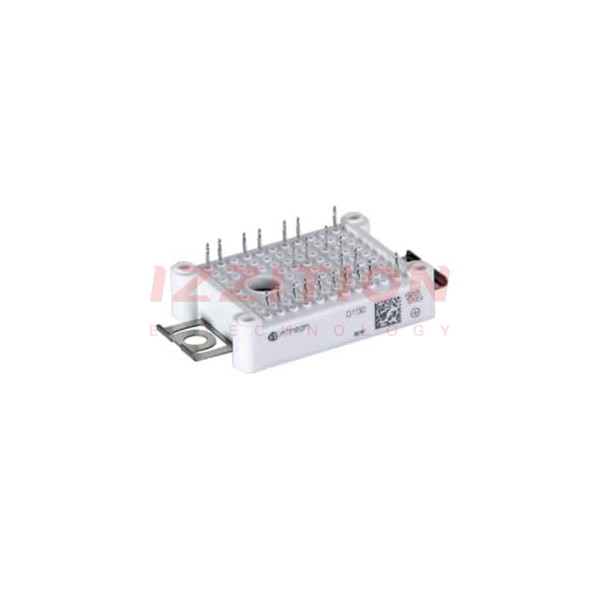

| Part Number | FP15R12W1T4B3BOMA1 | FP15R12W1T7B3BOMA1 | FP10R12W1T4B3BOMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Half Bridge Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 28 A | - | 20 A |
| Power - Max | 130 W | - | 105 W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 15A | - | 2.25V @ 15V, 10A |
| Current - Collector Cutoff (Max) | 1 mA | - | 1 mA |
| Input Capacitance (Cies) @ Vce | 890 pF @ 25 V | - | 600 pF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | No | Yes |
| Operating Temperature | -40°C ~ 150°C | 175°C (TJ) | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | AG-EASY1B-2 | Module |
