Please send RFQ , we will respond immediately.

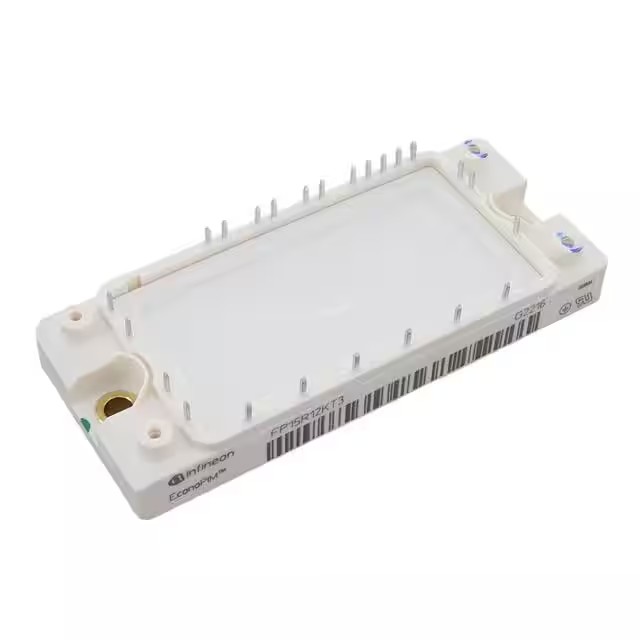

| Part Number | FP15R12KT3BPSA1 | FP25R12KT3BPSA1 | FP15R12KT3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Discontinued at Digi-Key |
| IGBT Type | - | - | - |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 25 A | 40 A | 18 A |
| Power - Max | 105 W | 105 W | 83.5 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 10A | 2.15V @ 15V, 25A | 2.45V @ 15V, 10A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 1.1 nF @ 25 V | 1.8 nF @ 25 V | 600 pF @ 25 V |
| Input | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | AG-ECONO2C | AG-ECONO2-8 | Module |
