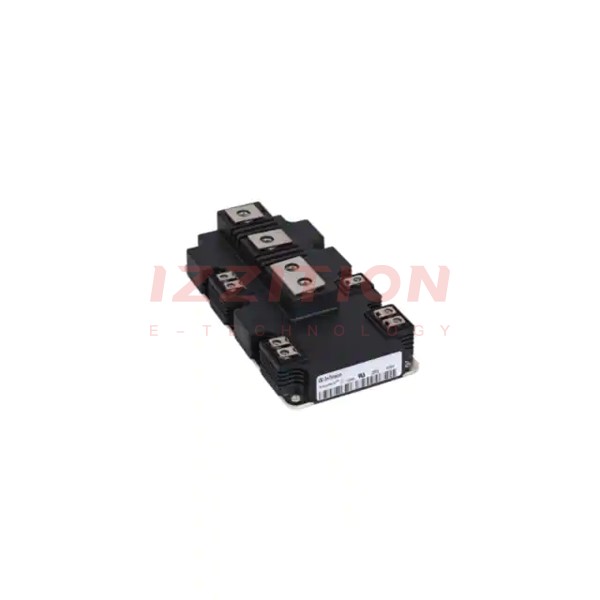

| Part Number | FF900R12IP4PBOSA1 | FF900R12IP4VBOSA1 | FF900R12IE4PBOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Not For New Designs | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | 2 Independent | 2 Independent | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 900 A | 900 A | 900 A |
| Power - Max | - | 5100 W | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 900A | 2.05V @ 15V, 900A | 2.1V @ 15V, 900A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 54 nF @ 25 V | 54 nF @ 25 V | 54 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
