Infineon Technologies-FF900R12IE4VBOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FF900R12IE4VBOSA1	FF900R12IP4VBOSA1	FF900R12IE4BOSA1	FF900R12IE4PBOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Not For New Designs	Not For New Designs	Active	Active
IGBT Type	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop
Configuration	2 Independent	2 Independent	Single	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V	1200 V	1200 V	1200 V
Current - Collector (Ic) (Max)	900 A	900 A	900 A	900 A
Power - Max	5100 W	5100 W	5100 W	20 mW
Vce(on) (Max) @ Vge, Ic	2.05V @ 15V, 900A	2.05V @ 15V, 900A	2.05V @ 15V, 900A	2.1V @ 15V, 900A
Current - Collector Cutoff (Max)	5 mA	5 mA	5 mA	5 mA
Input Capacitance (Cies) @ Vce	54 nF @ 25 V	54 nF @ 25 V	54 nF @ 25 V	54 nF @ 25 V
Input	Standard	Standard	Standard	Standard
NTC Thermistor	Yes	Yes	Yes	Yes
Operating Temperature	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C (TJ)	-40°C ~ 150°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module
Supplier Device Package	Module	Module	Module	Module

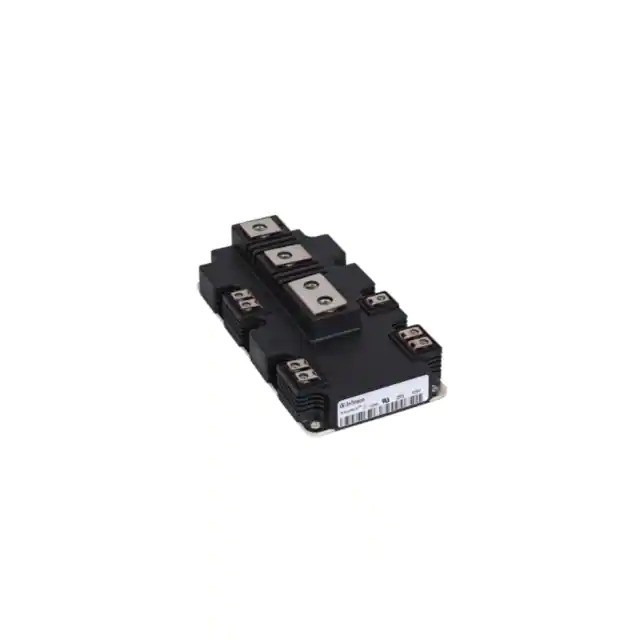

Infineon Technologies FF900R12IE4VBOSA1

IGBT Type:	Trench Field Stop
Configuration:	2 Independent
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	900 A
Power - Max:	5100 W
Vce(on) (Max) @ Vge, Ic:	2.05V @ 15V, 900A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	54 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
