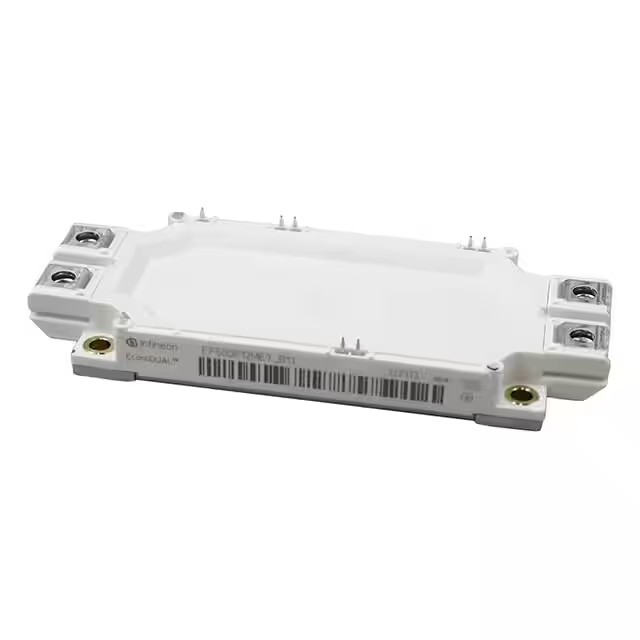

| Part Number | FF600R12ME7B11BPSA1 | FF300R12ME7B11BPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 600 A | 300 A |
| Power - Max | 20 mW | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 600A | 1.75V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 35 µA | 20 µA |
| Input Capacitance (Cies) @ Vce | 92 nF @ 25 V | 46 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | AG-ECONOD | AG-ECONOD |
