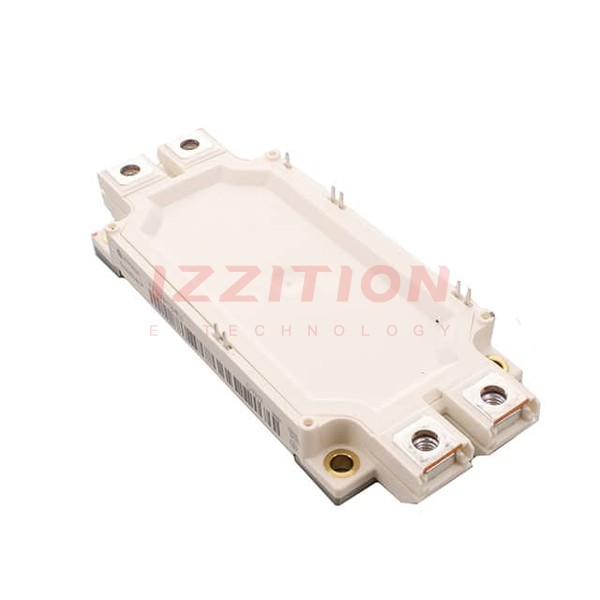

| Part Number | FF600R12ME4BOSA1 | FF600R12ME4CBOSA1 | FF600R17ME4BOSA1 | FF600R12ME4PBOSA1 | FF300R12ME4BOSA1 | FF600R12IE4BOSA1 | FF600R12KE4BOSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Active | Not For New Designs | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | - | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | 2 Independent | Half Bridge | 2 Independent | - | 2 Independent | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1700 V | - | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | - | 1060 A | - | - | 450 A | 600 A | 600 A |
| Power - Max | 4050 W | 4050 W | - | - | 1600 W | 3350 W | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 600A | 2.1V @ 15V, 600A | 2.3V @ 15V, 600A | - | 2.1V @ 15V, 300A | 2.05V @ 15V, 600A | 2.2V @ 15V, 600A |
| Current - Collector Cutoff (Max) | 3 mA | 3 mA | 1 mA | - | 3 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 37 nF @ 25 V | 37 nF @ 25 V | 48 nF @ 25 V | - | 18.5 nF @ 25 V | 37 nF @ 25 V | 38 nF @ 25 V |
| Input | Standard | Standard | Standard | - | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes | - | Yes | Yes | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | - | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | - | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | - | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | - | Module | Module | Module |
