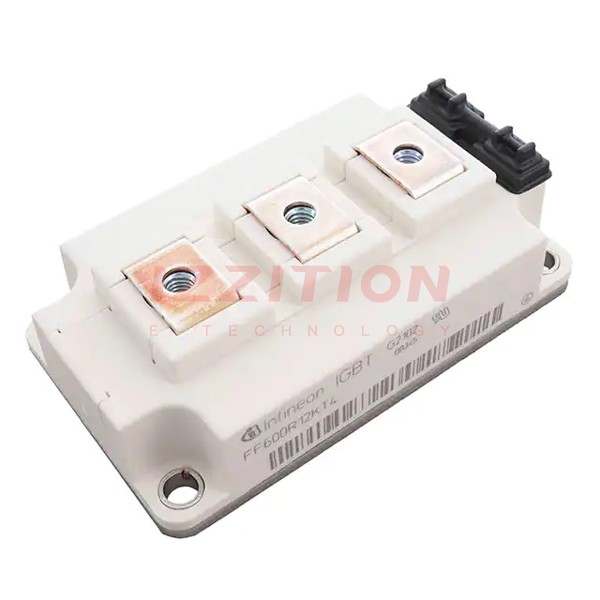

| Part Number | FF600R12KT4HOSA1 | FF200R12KT4HOSA1 | FF300R12KT4HOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | 2 Independent | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 600 A | 320 A | 450 A |
| Power - Max | - | 1100 W | 1600 W |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 600A | 2.15V @ 15V, 200A | 2.15V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 38 nF @ 25 V | 14 nF @ 25 V | 19 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | AG-62MM | Module | Module |
