Infineon Technologies-FF600R12KE4BOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FF600R12KE4BOSA1	FF600R12ME4BOSA1	FF600R12KE4EBOSA1	FF600R12KE4PBOSA1	FF600R12IE4BOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Active	Not For New Designs	Active	Active	Active
IGBT Type	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop
Configuration	Half Bridge	2 Independent	Half Bridge	2 Independent	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V	1200 V	1200 V	1200 V	1200 V
Current - Collector (Ic) (Max)	600 A	-	600 A	600 A	600 A
Power - Max	-	4050 W	-	-	3350 W
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 600A	2.1V @ 15V, 600A	2.2V @ 15V, 600A	2.2V @ 15V, 600A	2.05V @ 15V, 600A
Current - Collector Cutoff (Max)	5 mA	3 mA	5 mA	5 mA	5 mA
Input Capacitance (Cies) @ Vce	38 nF @ 25 V	37 nF @ 25 V	38 nF @ 25 V	38 nF @ 25 V	37 nF @ 25 V
Input	Standard	Standard	Standard	Standard	Standard
NTC Thermistor	No	Yes	No	No	Yes
Operating Temperature	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module	Module
Supplier Device Package	Module	Module	Module	AG-62MM-1	Module

IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	600 A
Power - Max:	-
Vce(on) (Max) @ Vge, Ic:	2.2V @ 15V, 600A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	38 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

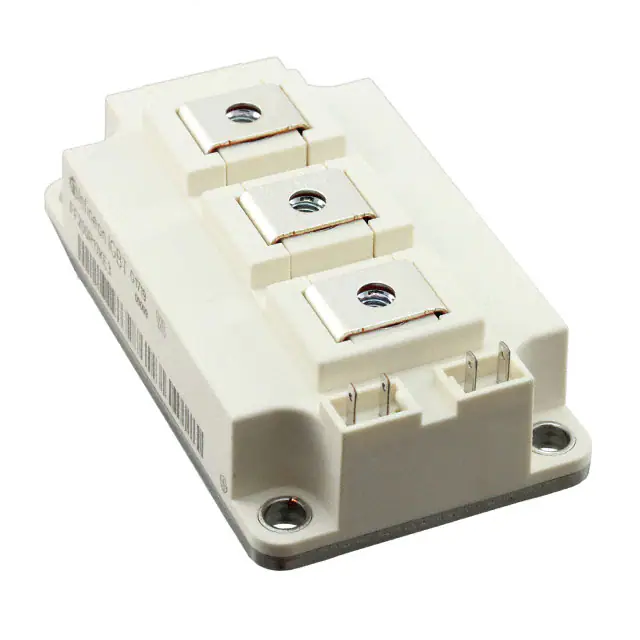

Infineon Technologies FF600R12KE4BOSA1
