Infineon Technologies-FF600R12IE4BOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FF600R12IE4BOSA1	FF600R12ME4BOSA1	FF600R12IP4BOSA1	FF900R12IE4BOSA1	FF600R12KE4BOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Active	Not For New Designs	Active	Active	Active
IGBT Type	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop
Configuration	Half Bridge	2 Independent	Half Bridge	Single	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V	1200 V	1200 V	1200 V	1200 V
Current - Collector (Ic) (Max)	600 A	-	600 A	900 A	600 A
Power - Max	3350 W	4050 W	3350 W	5100 W	-
Vce(on) (Max) @ Vge, Ic	2.05V @ 15V, 600A	2.1V @ 15V, 600A	2.05V @ 15V, 600A	2.05V @ 15V, 900A	2.2V @ 15V, 600A
Current - Collector Cutoff (Max)	5 mA	3 mA	5 mA	5 mA	5 mA
Input Capacitance (Cies) @ Vce	37 nF @ 25 V	37 nF @ 25 V	37 nF @ 25 V	54 nF @ 25 V	38 nF @ 25 V
Input	Standard	Standard	Standard	Standard	Standard
NTC Thermistor	Yes	Yes	Yes	Yes	No
Operating Temperature	-40°C ~ 150°C (TJ)	-40°C ~ 150°C	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module	Module
Supplier Device Package	Module	Module	Module	Module	Module

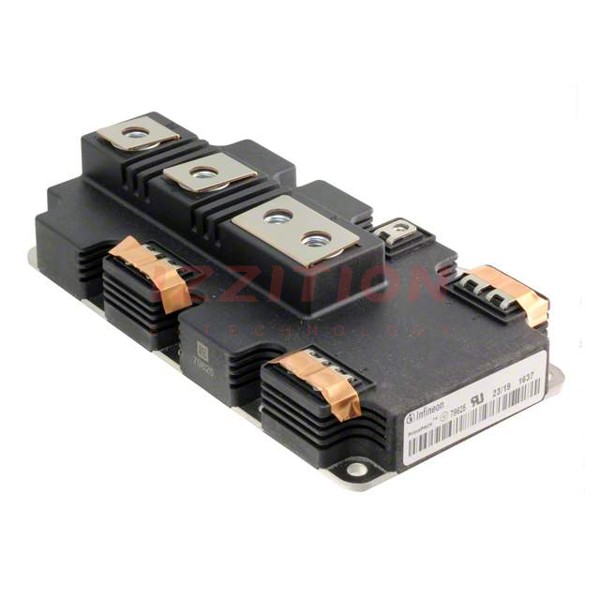

Infineon Technologies FF600R12IE4BOSA1

IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	600 A
Power - Max:	3350 W
Vce(on) (Max) @ Vge, Ic:	2.05V @ 15V, 600A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	37 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
