Please send RFQ , we will respond immediately.

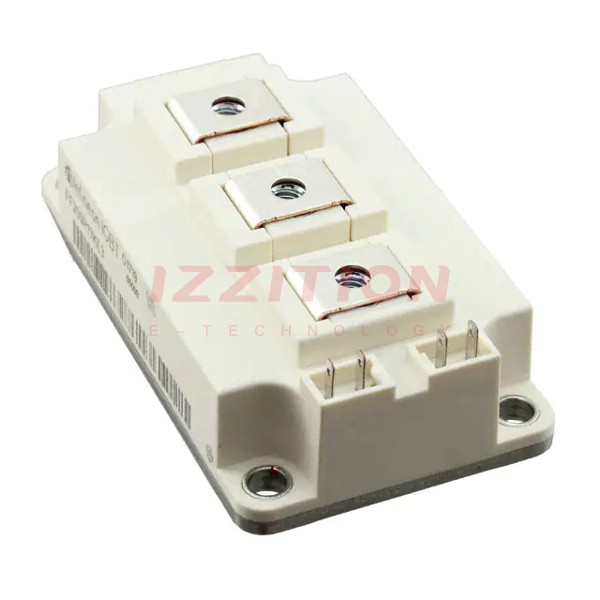

| Part Number | FF450R12KE4HOSA1 | FF450R12KT4HOSA1 | FF450R12KE4PHOSA1 | FF450R12KE4EHOSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge | Half Bridge | Half Bridge Inverter | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 520 A | 450 A | 450 A | 520 A |
| Power - Max | 2400 W | 2400 W | - | 2400 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 450A | 2.15V @ 15V, 450A | 2.15V @ 15V, 450A | 2.15V @ 15V, 450A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 28 nF @ 25 V | 28 nF @ 25 V | 28 nF @ 25 V | 28 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module |
