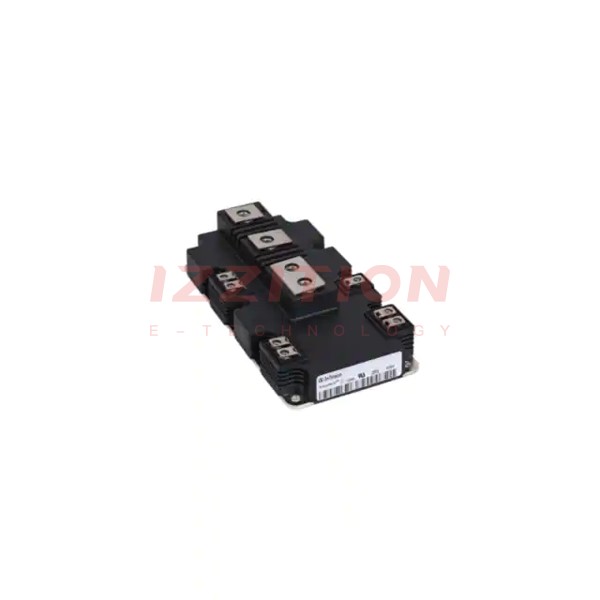

| Part Number | FF450R12IE4BOSA2 | FF450R17IE4BOSA2 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | - |
| Configuration | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1700 V |
| Current - Collector (Ic) (Max) | 450 A | 620 A |
| Power - Max | 2550 W | 2800 W |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 450A | 2.45V @ 15V, 450A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 27 nF @ 25 V | 36 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
