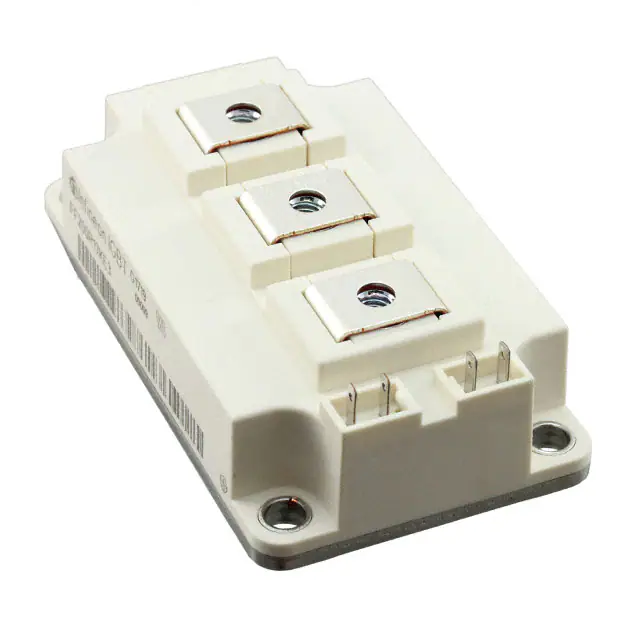

| Part Number | FF400R12KE3HOSA1 | FF400R12KT3HOSA1 | FF200R12KE3HOSA1 | FF300R12KE3HOSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Not For New Designs | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | - | Trench Field Stop |
| Configuration | Half Bridge | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 580 A | 580 A | - | 440 A |
| Power - Max | 2000 W | 2000 W | 1050 W | 1450 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 400A | 2.15V @ 15V, 400A | 2.15V @ 15V, 200A | 2.15V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 28 nF @ 25 V | 28 nF @ 25 V | 14 nF @ 25 V | 21 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | Yes | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module |
