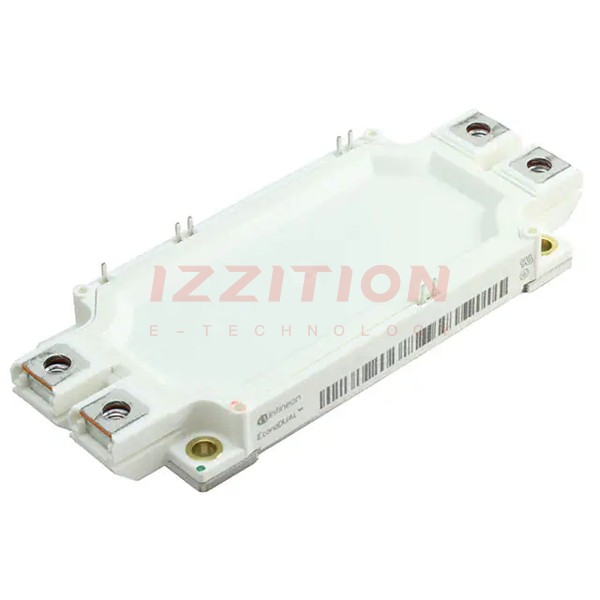

| Part Number | FF300R17ME4BOSA1 | FF600R17ME4BOSA1 | FF300R07ME4BOSA1 | FF300R12ME4BOSA1 | FF300R17ME3BOSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Not For New Designs |
| IGBT Type | NPT | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge | 2 Independent | 2 Independent | 2 Independent | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V | 650 V | 1200 V | 1700 V |
| Current - Collector (Ic) (Max) | 375 A | - | 300 A | 450 A | 375 A |
| Power - Max | 1800 W | - | 20 mW | 1600 W | 1650 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 300A | 2.3V @ 15V, 600A | 1.95V @ 15V, 300A | 2.1V @ 15V, 300A | 2.45V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 3 mA | 1 mA | 1 mA | 3 mA | 3 mA |
| Input Capacitance (Cies) @ Vce | - | 48 nF @ 25 V | 18.5 nF @ 25 V | 18.5 nF @ 25 V | 27 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | AG-ECONOD-3 | Module | Module |
