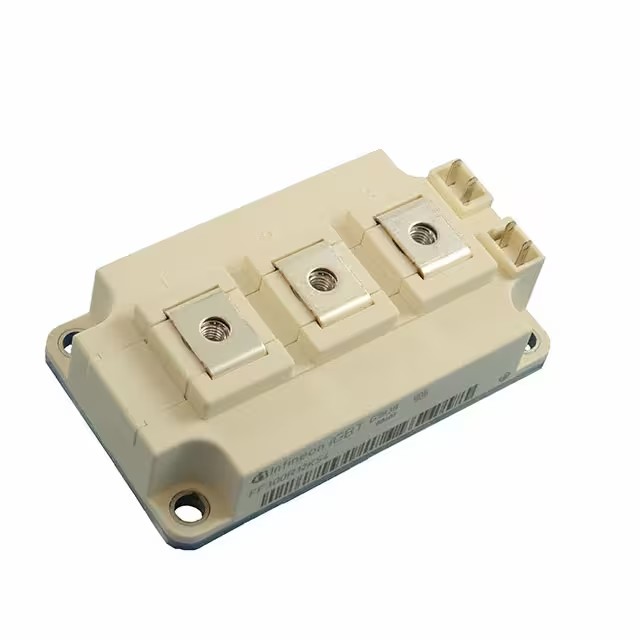

| Part Number | FF300R12KS4HOSA1 | FF300R12KT4HOSA1 | FF300R12KS4PHOSA1 | FD300R12KS4HOSA1 | FF100R12KS4HOSA1 | FF200R12KS4HOSA1 | FF300R12KE4HOSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Not For New Designs | Active | Active | Active |
| IGBT Type | - | Trench Field Stop | - | - | - | - | Trench Field Stop |
| Configuration | 2 Independent | Half Bridge | Half Bridge Inverter | Single Chopper | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 370 A | 450 A | 300 A | 370 A | 150 A | 275 A | 460 A |
| Power - Max | 1950 W | 1600 W | - | 1950 W | 780 W | 1400 W | 1600 W |
| Vce(on) (Max) @ Vge, Ic | 3.75V @ 15V, 300A | 2.15V @ 15V, 300A | 3.75V @ 15V, 300A | 3.75V @ 15V, 300A | 3.7V @ 15V, 100A | 3.7V @ 15V, 200A | 2.15V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 20 nF @ 25 V | 19 nF @ 25 V | 20 nF @ 25 V | 20 nF @ 25 V | 650 nF @ 25 V | 13 nF @ 25 V | 19 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No | No | No | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module | Module | Module | Module |
