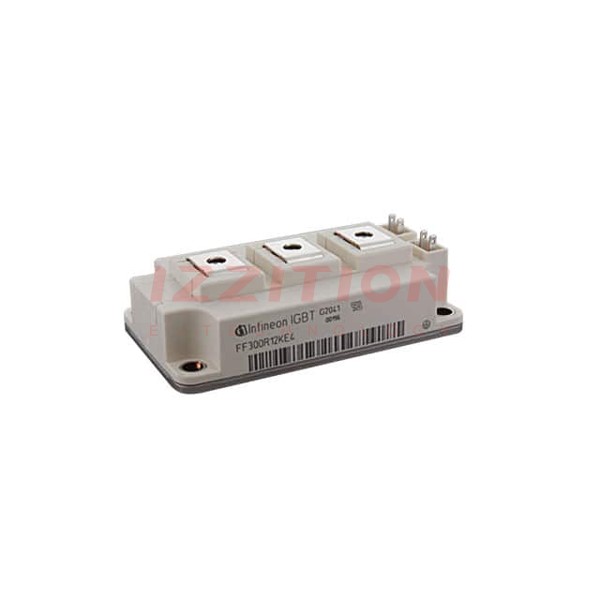

| Part Number | FF300R12KE4HOSA1 | FF300R12KT4HOSA1 | FF300R17KE4HOSA1 | FF300R12KS4HOSA1 | FF300R12KE4PHOSA1 | FF200R12KE4HOSA1 | FF300R12KE3HOSA1 | FF300R12KE4EHOSA1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | - | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | 2 Independent | Half Bridge | 2 Independent | 2 Independent | Half Bridge Inverter | Half Bridge | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1700 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 460 A | 450 A | 440 A | 370 A | 300 A | 240 A | 440 A | 460 A |
| Power - Max | 1600 W | 1600 W | 1800 W | 1950 W | - | 1100 W | 1450 W | 1600 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 300A | 2.15V @ 15V, 300A | 2.3V @ 15V, 300A | 3.75V @ 15V, 300A | 2.15V @ 15V, 300A | 2.15V @ 15V, 200A | 2.15V @ 15V, 300A | 2.15V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 1 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 19 nF @ 25 V | 19 nF @ 25 V | 24.5 nF @ 25 V | 20 nF @ 25 V | 19 nF @ 25 V | 14 nF @ 25 V | 21 nF @ 25 V | 19 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | No | No | No | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | -40°C ~ 125°C | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module | Module | Module | Module | Module |
