Please send RFQ , we will respond immediately.

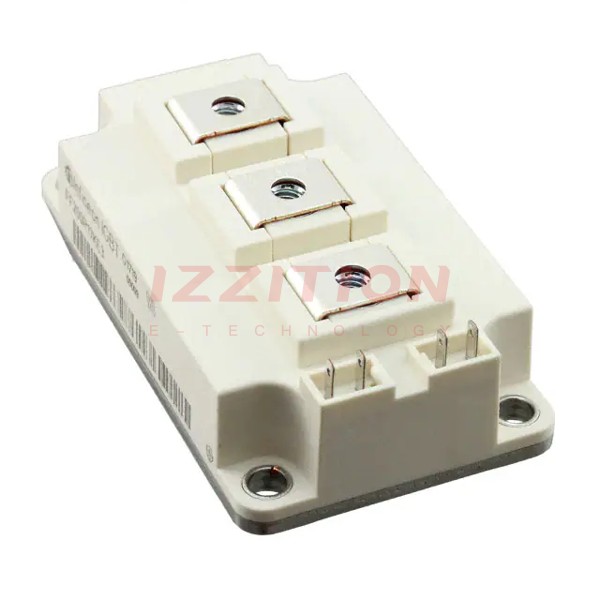

| Part Number | FF300R12KE3HOSA1 | FF400R12KE3HOSA1 | FF300R12KE4HOSA1 | FF300R12KT3HOSA1 | FF300R17KE3HOSA1 | FD300R12KE3HOSA1 | FF200R12KE3HOSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Not For New Designs | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop | - | - |
| Configuration | 2 Independent | Half Bridge | 2 Independent | 2 Independent | 2 Independent | Single | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1700 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 440 A | 580 A | 460 A | 480 A | - | 480 A | - |
| Power - Max | 1450 W | 2000 W | 1600 W | 1450 W | 1450 W | 1470 W | 1050 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 300A | 2.15V @ 15V, 400A | 2.15V @ 15V, 300A | 2.15V @ 15V, 300A | 2.45V @ 15V, 300A | 2.15V @ 15V, 300A | 2.15V @ 15V, 200A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA | 5 mA | 3 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V | 28 nF @ 25 V | 19 nF @ 25 V | 21 nF @ 25 V | 27 nF @ 25 V | 21 nF @ 25 V | 14 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | Yes | No | No | No | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 150°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module | Module | Module | Module |
