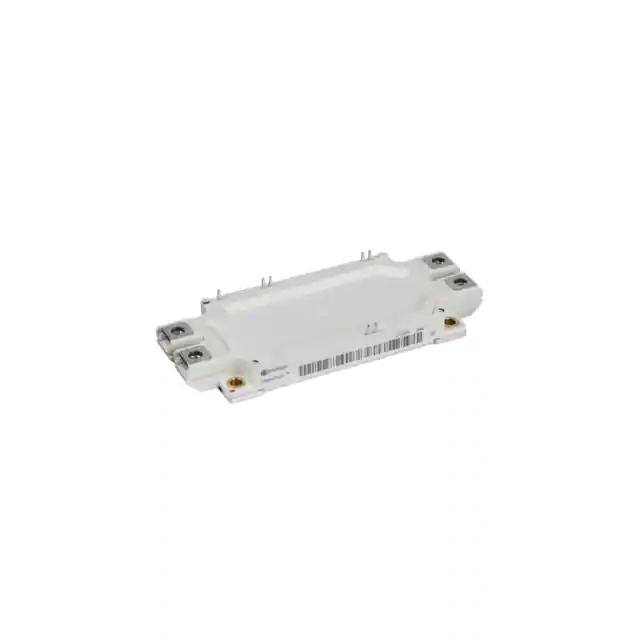

| Part Number | FF225R12ME4BOSA1 | FF225R17ME4BOSA1 | FF225R12MS4BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | - |
| Configuration | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1700 V | 1200 V |
| Current - Collector (Ic) (Max) | 320 A | 340 A | 275 A |
| Power - Max | 1050 W | 1500 W | 1450 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 225A | 2.3V @ 15V, 225A | 3.7V @ 15V, 225A |
| Current - Collector Cutoff (Max) | 3 mA | 3 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 13 nF @ 25 V | 18.5 nF @ 25 V | 15 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
