Please send RFQ , we will respond immediately.

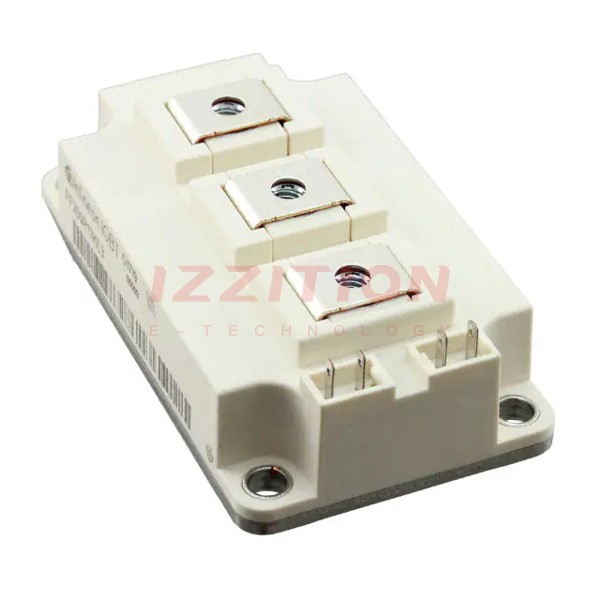

| Part Number | FF200R12KT4HOSA1 | FF600R12KT4HOSA1 | FF300R12KT4HOSA1 | FF200R12KE4HOSA1 | FF200R12KS4HOSA1 | FF200R12KT3HOSA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Not For New Designs |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop | - | Trench Field Stop |
| Configuration | Half Bridge | 2 Independent | Half Bridge | Half Bridge | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 320 A | 600 A | 450 A | 240 A | 275 A | - |
| Power - Max | 1100 W | - | 1600 W | 1100 W | 1400 W | 1050 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 200A | 2.2V @ 15V, 600A | 2.15V @ 15V, 300A | 2.15V @ 15V, 200A | 3.7V @ 15V, 200A | 2.15V @ 15V, 200A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 14 nF @ 25 V | 38 nF @ 25 V | 19 nF @ 25 V | 14 nF @ 25 V | 13 nF @ 25 V | 14 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | AG-62MM | Module | Module | Module | Module |
