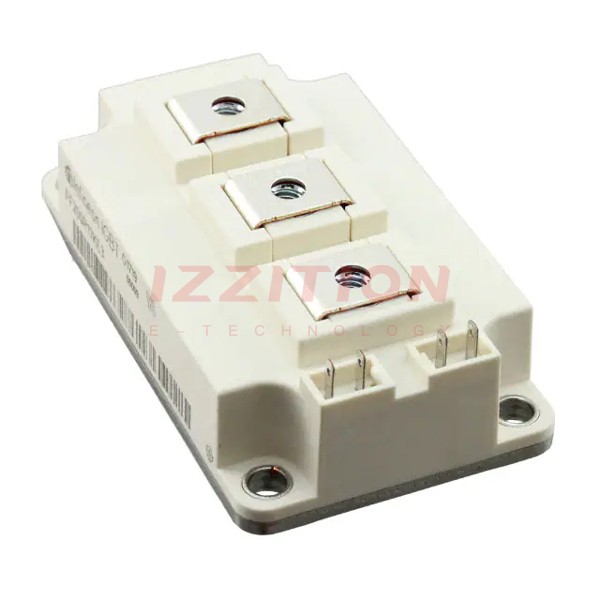

| Part Number | FF200R06KE3HOSA1 | FF400R06KE3HOSA1 | FF300R06KE3HOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge | Half Bridge | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 260 A | 500 A | 400 A |
| Power - Max | 680 W | 1250 W | 940 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 200A | 1.9V @ 15V, 400A | 1.9V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | - | - | 19 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
