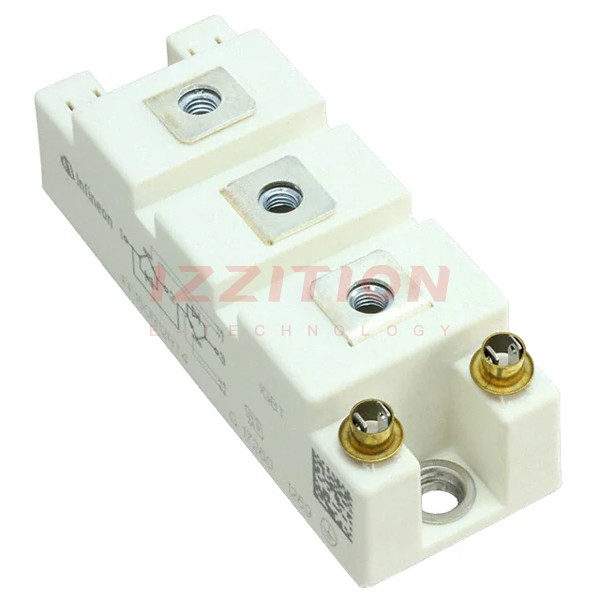

| Part Number | FF150R12RT4HOSA1 | FF50R12RT4HOSA1 | FD150R12RT4HOSA1 | FF100R12RT4HOSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge | Half Bridge | Single Chopper | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 150 A | 50 A | 150 A | 100 A |
| Power - Max | 790 W | 285 W | 790 W | 555 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 150A | 2.15V @ 15V, 50A | 2.15V @ 15V, 150A | 2.15V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | - | 2.8 nF @ 25 V | 9.3 nF @ 25 V | 630 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module |
