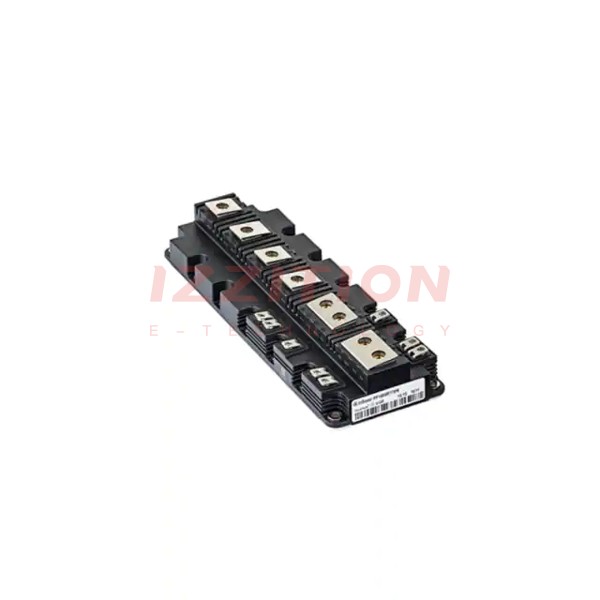

| Part Number | FF1500R12IE5PBPSA1 | FF1800R12IE5PBPSA1 | FF1200R12IE5PBPSA1 | FF1500R12IE5BPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge | 2 Independent | Half Bridge | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 1500 A | 1800 A | 2400 A | 1500 A |
| Power - Max | 20 mW | 20 mW | 20 mW | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 1.5kA | 2.15V @ 15V, 1800A | 2.15V @ 15V, 1200A | 2.15V @ 15V, 1500A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | - | 98.5 nF @ 25 V | 65.5 nF @ 25 V | 82 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 175°C | -40°C ~ 175°C (TJ) | -40°C ~ 175°C | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | AG-PRIME3+-5 | Module | Module | Module |
