Please send RFQ , we will respond immediately.

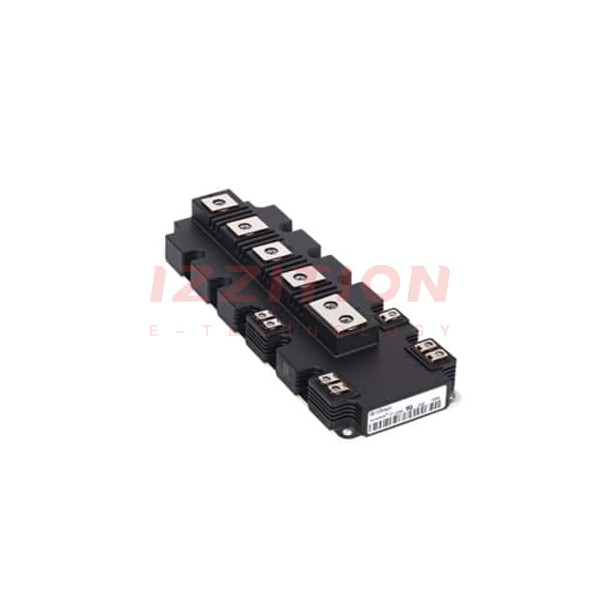

| Part Number | FF1400R12IP4BOSA1 | FF1400R17IP4BOSA1 | FF1400R12IP4PBOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1700 V | 1200 V |
| Current - Collector (Ic) (Max) | 1400 A | 1400 A | 1400 A |
| Power - Max | 765000 W | 955000 W | 1400000 W |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 1400A | 2.2V @ 15V, 1400A | 2.05V @ 15V, 1400A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 82 nF @ 25 V | 110 nF @ 25 V | 82 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
