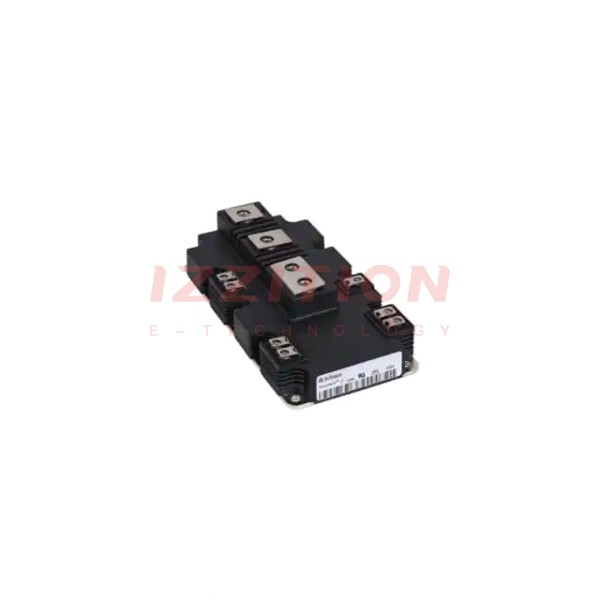

Infineon Technologies-FF1200R12IE5PBPSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FF1200R12IE5PBPSA1	FF1500R12IE5PBPSA1	FF1800R12IE5PBPSA1	FF1200R12IE5BPSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Active	Active	Active	Active
IGBT Type	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop
Configuration	Half Bridge	Half Bridge	2 Independent	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V	1200 V	1200 V	1200 V
Current - Collector (Ic) (Max)	2400 A	1500 A	1800 A	2400 A
Power - Max	20 mW	20 mW	20 mW	20 mW
Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 1200A	2.15V @ 15V, 1.5kA	2.15V @ 15V, 1800A	2.15V @ 15V, 1200A
Current - Collector Cutoff (Max)	5 mA	5 mA	5 mA	5 mA
Input Capacitance (Cies) @ Vce	65.5 nF @ 25 V	-	98.5 nF @ 25 V	65.5 nF @ 25 V
Input	Standard	Standard	Standard	Standard
NTC Thermistor	Yes	Yes	Yes	Yes
Operating Temperature	-40°C ~ 175°C	-40°C ~ 175°C	-40°C ~ 175°C (TJ)	-40°C ~ 175°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module
Supplier Device Package	Module	AG-PRIME3+-5	Module	Module

Infineon Technologies FF1200R12IE5PBPSA1

IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	2400 A
Power - Max:	20 mW
Vce(on) (Max) @ Vge, Ic:	2.15V @ 15V, 1200A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	65.5 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 175°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
