Infineon Technologies-FD16001200R17HP4B2BOSA2 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	-
Configuration:	Dual Brake Chopper
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	-
Power - Max:	10500 W
Vce(on) (Max) @ Vge, Ic:	2.25V @ 15V, 1600A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	130 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

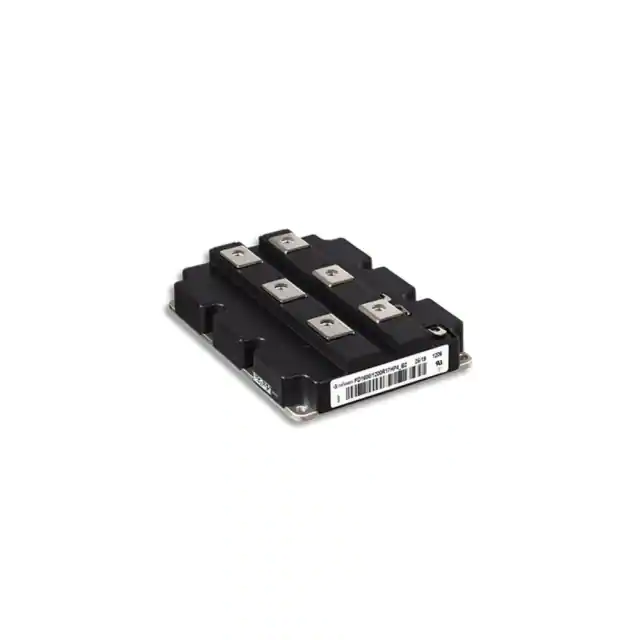

Infineon Technologies FD16001200R17HP4B2BOSA2
