Infineon Technologies-FD1000R17IE4BOSA2 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	-
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	-
Power - Max:	6250 W
Vce(on) (Max) @ Vge, Ic:	2.45V @ 15V, 1000A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	81 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

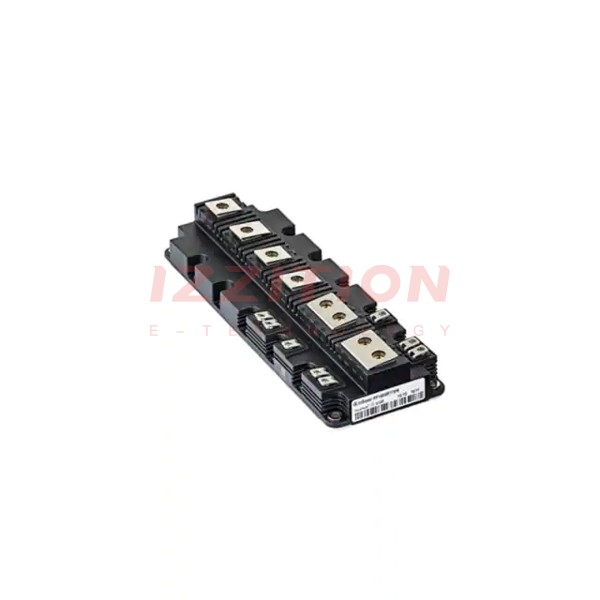

Infineon Technologies FD1000R17IE4BOSA2
