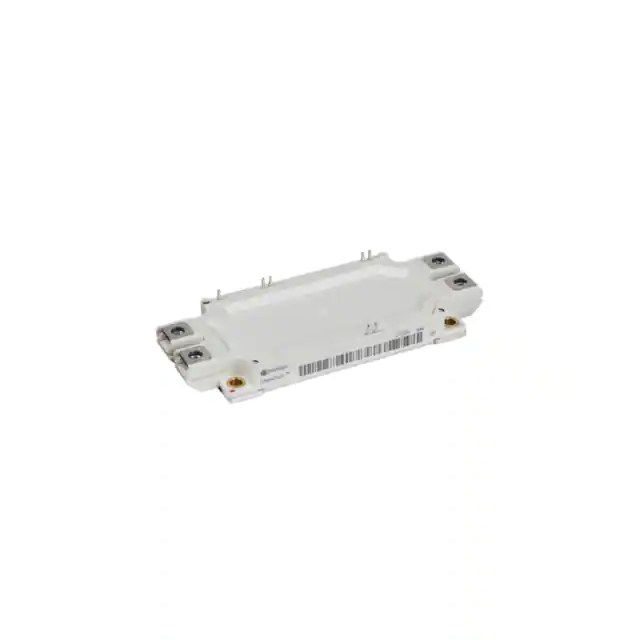

| Part Number | F3L300R12MT4B22BOSA1 | F3L300R12MT4B23BOSA1 | F3L300R12ME4B22BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge Inverter | Half Bridge | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 450 A | 450 A | 450 A |
| Power - Max | 1550 W | 1550 W | 1550 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 300A | 2.1V @ 15V, 300A | 2.1V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 19 nF @ 25 V | 19 nF @ 25 V | 19 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
