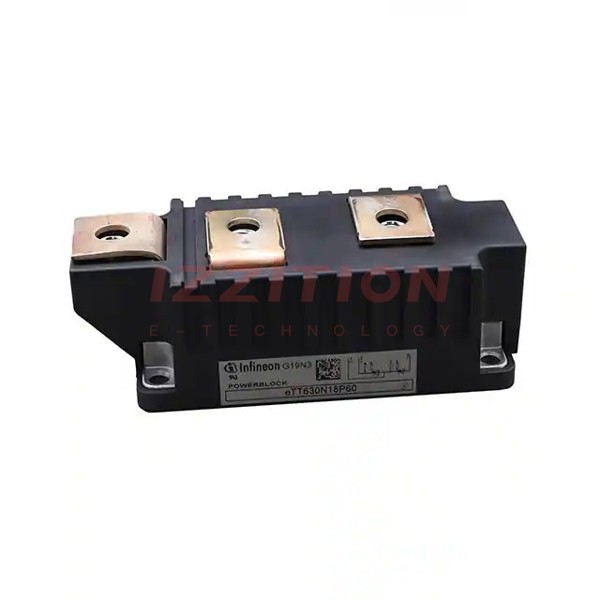

| Part Number | ETT630N18P60HPSA1 | ETD630N18P60HPSA1 | ETT630N16P60HPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - SCR/Diode | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 1 SCR, 1 Diode | 2 SCRs |
| Voltage - Off State | 1.8 kV | 1.8 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 628 A | 628 A | 635 A |
| Current - On State (It (RMS)) (Max) | 700 A | 700 A | 700 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16800A, 20000A | 16800A, 20000A | 19800A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA |
| Operating Temperature | 135°C (TJ) | 135°C (TJ) | -40°C ~ 135°C (TC) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
