| Part Number | ESD5V3U1U-02LRH E6327 | ESD3V3U1U-02LRH E6327 | ESD5V3S1U-02LRH E6327 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5.3V (Max) | 3.3V (Max) | 5.3V (Max) |
| Voltage - Breakdown (Min) | 6V | 5V | 5.7V |
| Voltage - Clamping (Max) @ Ipp | 28V (Typ) | 28V (Typ) | 11V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | 3A (8/20µs) | 5.5A (8/20µs) |
| Power - Peak Pulse | - | - | 66W |
| Power Line Protection | No | No | No |
| Applications | Ethernet, HDMI | Ethernet, HDMI | General Purpose |
| Capacitance @ Frequency | 0.4pF @ 1MHz | 0.4pF @ 1GHz | 35pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

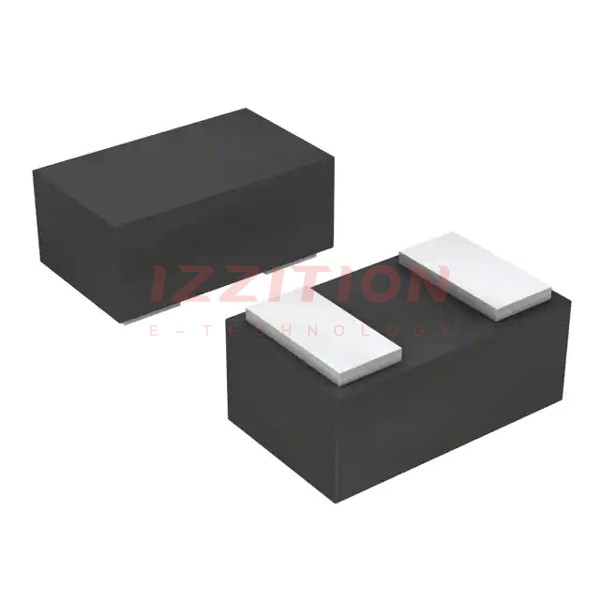

| Package / Case | SOD-882 | SOD-882 | SOD-882 |
| Supplier Device Package | PG-TSLP-2-7 | PG-TSLP-2-7 | PG-TSLP-2-17 |
