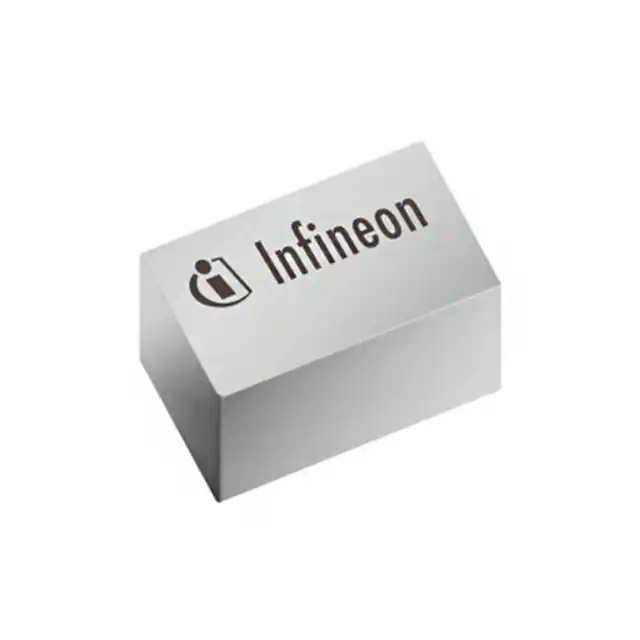

| Part Number | ESD253B1W0201E6327XTSA1 | ESD259B1W0201E6327XTSA1 | ESD233B1W0201E6327XTSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 24V | 16V | 5.5V |
| Voltage - Breakdown (Min) | - | - | 7.5V |
| Voltage - Clamping (Max) @ Ipp | 30V (Typ) | 25V (Typ) | 13V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | 2.5A (8/20µs) | 5A (8/20µs) |
| Power - Peak Pulse | 90W | 62.5W | 70W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Amplification |
| Capacitance @ Frequency | 2.8pF @ 1MHz | 4.2pF @ 1MHz | 33pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | PG-WLL-2-3 | PG-WLL-2-3 | SG-WLL-2-1 |
