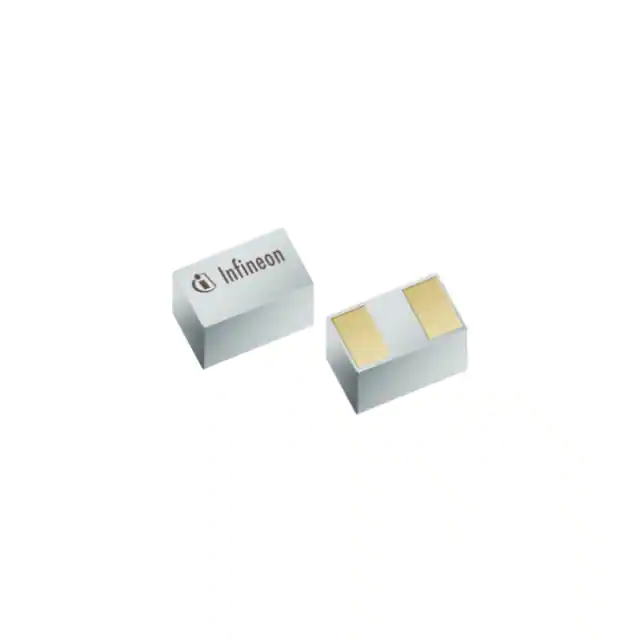

| Part Number | ESD246B1W01005E6327XTSA1 | ESD240B1W01005E6327XTSA1 | ESD242B1W01005E6327XTSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V | 22V | 3.3V |
| Voltage - Breakdown (Min) | - | - | - |
| Voltage - Clamping (Max) @ Ipp | 7.5V | 27V | 6V |
| Current - Peak Pulse (10/1000µs) | 5.5A (8/20µs) | 3A (8/20µs) | 4.5A (8/20µs) |
| Power - Peak Pulse | 44W | - | 25W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 5.5pF @ 1GHz | - | 6pF @ 1GHz |
| Operating Temperature | -55°C ~ 125°C | - | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 01005 (0402 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | WLL-2-2 | P/PG-WLL-2-2 | WLL-2-2 |
