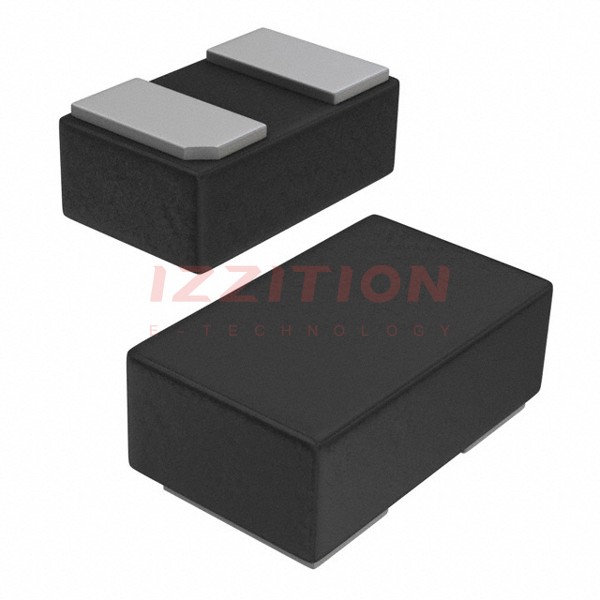

| Part Number | ESD233B1W0201E6327XTSA1 | ESD237B1W0201E6327XTSA1 | ESD239B1W0201E6327XTSA1 | ESD234B1W0201E6327XTSA1 | ESD253B1W0201E6327XTSA1 | ESD230B1W0201E6327XTSA1 | ESD231B1W0201E6327XTSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V | 8V (Max) | 22V | 5.5V | 24V | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 7.5V | 9V | - | 7.5V | - | 6.05V | 6.1V |
| Voltage - Clamping (Max) @ Ipp | 13V | 17V (Typ) | 26.5V | 12V (Typ) | 30V (Typ) | 14V | 10V (Typ) |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | 3A (8/20µs) | 3A (8/20µs) | 7A (8/20µs) | 3A (8/20µs) | 3A (8/20µs) | 9A (8/20µs) |
| Power - Peak Pulse | 70W | 42W | 80W | 84W | 90W | 56W | 132W |
| Power Line Protection | No | No | No | No | No | - | No |
| Applications | General Amplification | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | HDMI |
| Capacitance @ Frequency | 33pF @ 1MHz | 7pF @ 1MHz | 3.2pF @ 1GHz | 56pF @ 1MHz | 2.8pF @ 1MHz | 7pF @ 1MHz | 3.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | SG-WLL-2-1 | WLL-2-1 | WLL-2-3 | WLL-2-1 | PG-WLL-2-3 | WLL-2-1 | WLL-2-1 |
