Please send RFQ , we will respond immediately.

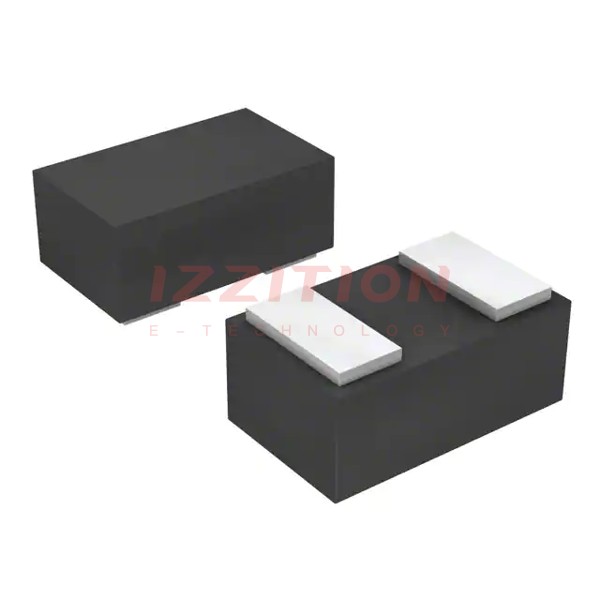

| Part Number | ESD204B102ELE6327XTMA1 | ESD208B102ELE6327XTMA1 | ESD207B102ELE6327XTMA1 | ESD206B102ELE6327XTMA1 | ESD205B102ELE6327XTMA1 | ESD203B102ELE6327XTMA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 14V (Max) | 3.3V (Max) | 3.3V (Max) | 5.5V (Max) | 5.5V (Max) | 13.2V (Max) |
| Voltage - Breakdown (Min) | 8.5V | 3.65V | 3.65V | 6.1V | 6V | 13.7V |
| Voltage - Clamping (Max) @ Ipp | 28V | 8.1V | 8.1V | 9.6V (Typ) | 9V (Typ) | 23V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | 4A (8/20µs) | 8A (8/20µs) | 6A (8/20µs) | 2.5A (8/20µs) | 5A (8/20µs) |
| Power - Peak Pulse | - | 30W | - | - | 30W | 115W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 4pF @ 1MHz | 6pF @ 1MHz | 14pF @ 1MHz | 12pF @ 1MHz | 5pF @ 1MHz | 6pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | PG-TSLP-2-20 | PG-TSLP-2-19 | PG-TSLP-2-19 | PG-TSLP-2-19 | PG-TSLP-2-19 | PG-TSLP-2-20 |
