Please send RFQ , we will respond immediately.

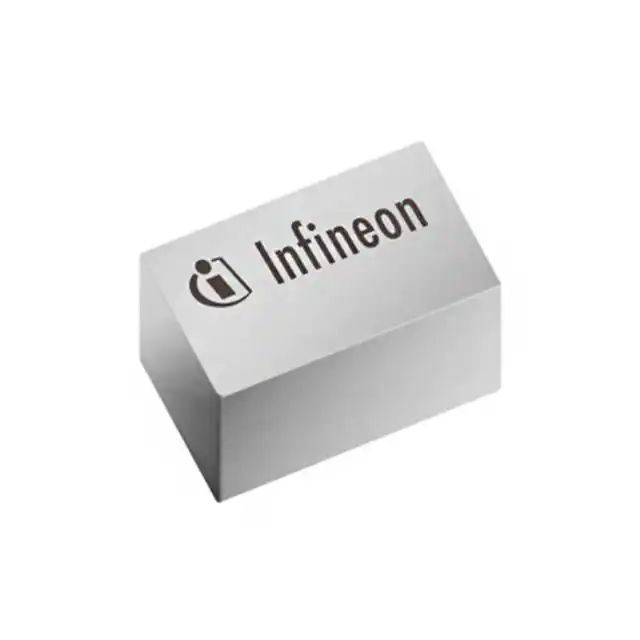

| Part Number | ESD131B1W0201E6327XTSA1 | ESD231B1W0201E6327XTSA1 | ESD134B1W0201E6327XTSA1 | ESD132B1W0201E6327XTSA1 | ESD130B1W0201E6327XTSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | - | - | Zener |
| Unidirectional Channels | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | - | - | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V | 5.5V (Max) | - | - | 5.5V |
| Voltage - Breakdown (Min) | 6V | 6.1V | - | - | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 13V | 10V (Typ) | - | - | 18.5V |
| Current - Peak Pulse (10/1000µs) | 3.5A (8/20µs) | 9A (8/20µs) | - | - | 2.5A (8/20µs) |
| Power - Peak Pulse | 26W | 132W | - | - | 27.5W |
| Power Line Protection | No | No | - | - | No |
| Applications | HDMI, USB | HDMI | - | - | General Purpose |
| Capacitance @ Frequency | 0.2pF @ 2.5GHz | 3.5pF @ 1MHz | - | - | 0.3pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C (TJ) | - | - | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | - | - | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | - | - | 0201 (0603 Metric) |
| Supplier Device Package | WLL-2-3 | WLL-2-1 | - | - | WLL-2-1 |
