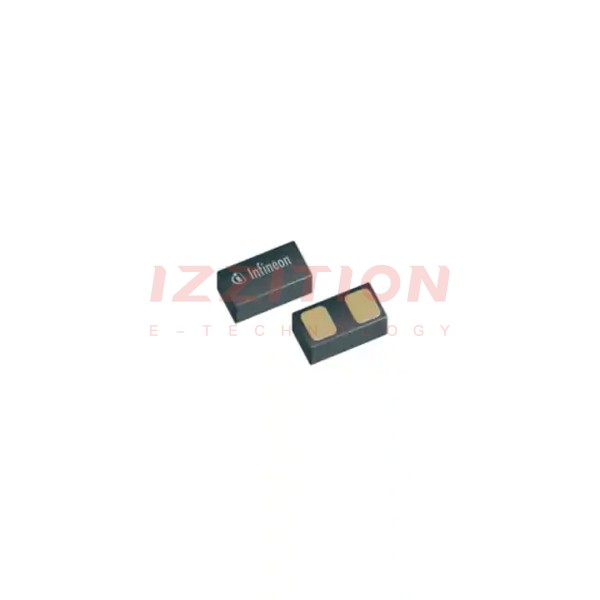

| Part Number | ESD113B102ELE6327XTMA1 | ESD103B102ELE6327XTMA1 | ESD110B102ELE6327XTMA1 | ESD112B102ELE6327XTMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 3.6V (Max) | 15V (Max) | 18.5V (Max) | 5.3V (Max) |
| Voltage - Breakdown (Min) | 4V | 21V (Typ) | 20V | 7V |
| Voltage - Clamping (Max) @ Ipp | 8V | 48V (Typ) | 29V | 21V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | 16A (100ns) | 2A (8/20µs) | 3A (8/20µs) |
| Power - Peak Pulse | 36W | - | 58W | - |
| Power Line Protection | No | No | No | No |
| Applications | HDMI | RF Antenna | RF Antenna | RF Antenna |
| Capacitance @ Frequency | 0.2pF @ 1MHz | 0.13pF @ 1MHz | 0.30pF @ 1MHz | 0.23pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | PG-TSLP-2-20 | PG-TSLP-2-20 | PG-TSLP-2-20 | PG-TSLP-2-20 |
