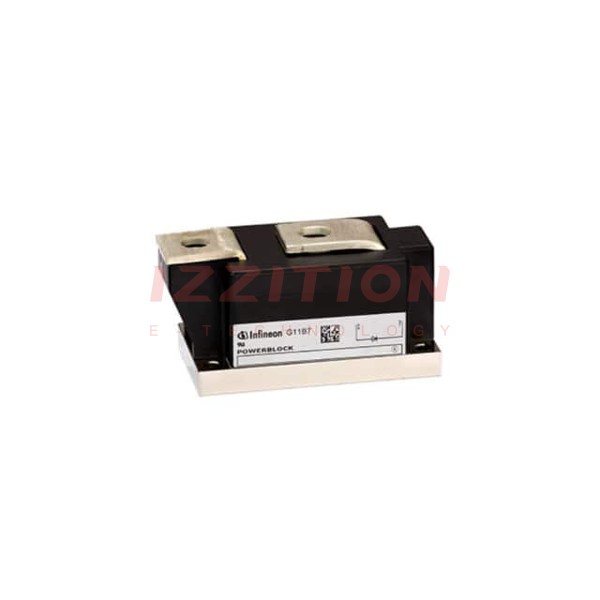

| Part Number | DZ540N26KHPSA1 | DZ540N20KHPSA1 | DZ540N22KHPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2600 V | 2000 V | 2200 V |
| Current - Average Rectified (Io) | 732A | 732A | 732A |
| Voltage - Forward (Vf) (Max) @ If | 1.64 V @ 2200 A | 1.64 V @ 2200 A | 1.64 V @ 2200 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 40 mA @ 2600 V | 40 mA @ 2000 V | 40 mA @ 2200 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
