Infineon Technologies-DZ1100N22KHPSA2 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	2200 V
Current - Average Rectified (Io):	1100A
Voltage - Forward (Vf) (Max) @ If:	1.11 V @ 3000 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	80 mA @ 2200 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
Operating Temperature - Junction:	-40°C ~ 150°C

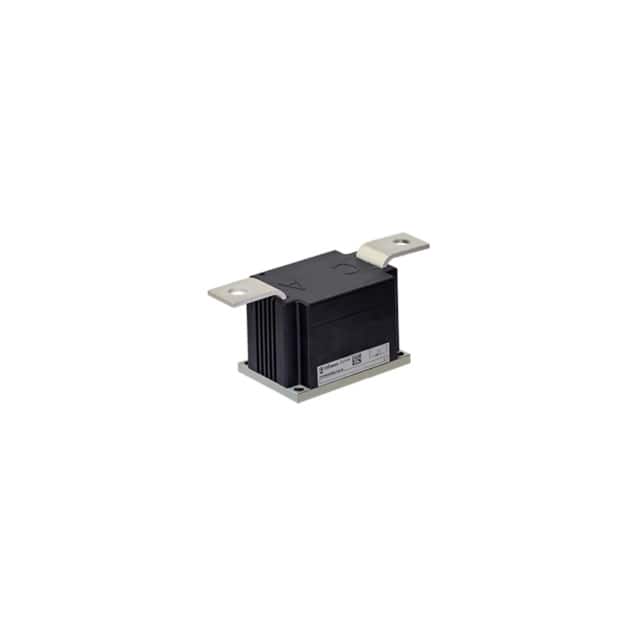

Infineon Technologies DZ1100N22KHPSA2
