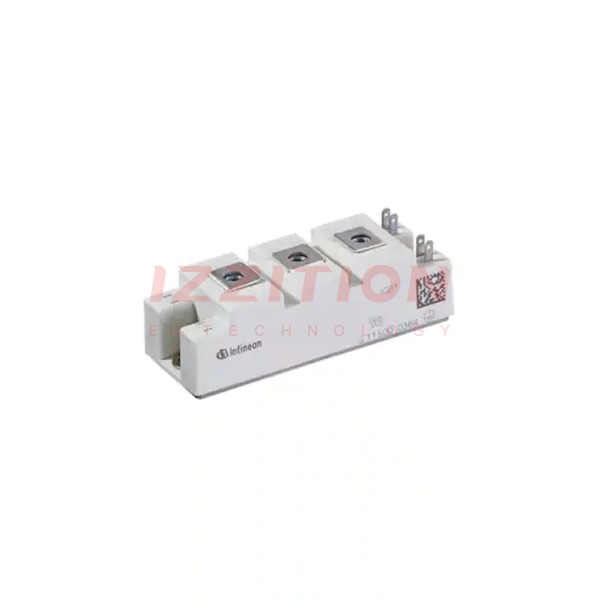

| Part Number | DF200R12KE3HOSA1 | DF300R12KE3HOSA1 | DF400R12KE3HOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | Trench Field Stop |
| Configuration | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | - | 480 A | 580 A |
| Power - Max | 1040 W | 1470 W | 2000 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 200A | 2.15V @ 15V, 300A | 2.15V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 14 nF @ 25 V | 21 nF @ 25 V | 28 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
