Infineon Technologies-DF1400R12IP4DBOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Single Chopper
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	1400 A
Power - Max:	7700 W
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 1400A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	82 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

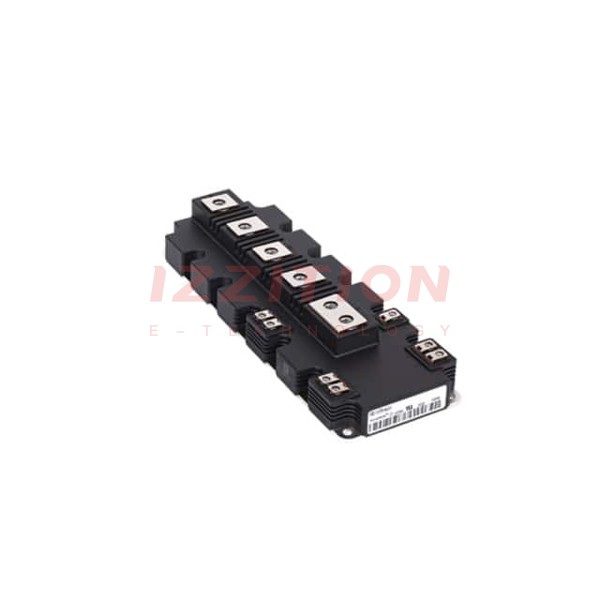

Infineon Technologies DF1400R12IP4DBOSA1
