Infineon Technologies-DF11MR12W1M1B11BOMA1 - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	50A
Rds On (Max) @ Id, Vgs:	23mOhm @ 50A, 15V
Vgs(th) (Max) @ Id:	5.5V @ 20mA
Gate Charge (Qg) (Max) @ Vgs:	125nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:	3950pF @ 800V
Power - Max:	20mW
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	AG-EASY1BM-2

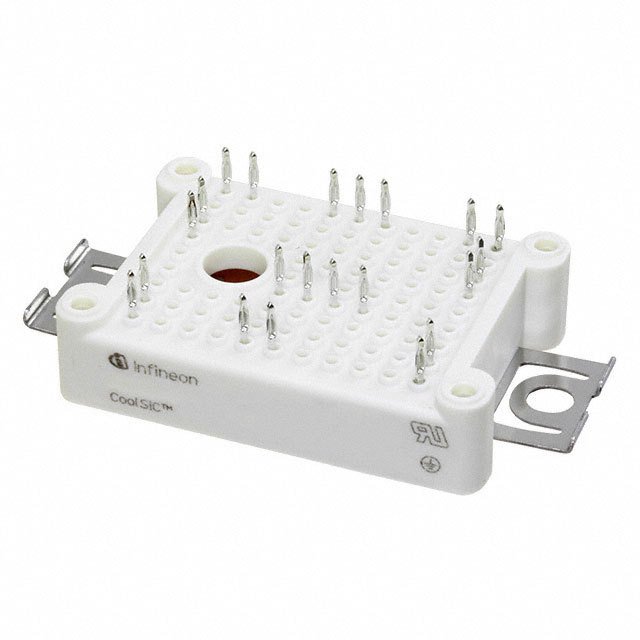

Infineon Technologies DF11MR12W1M1B11BOMA1
