Infineon Technologies-DDB6U134N16RRBOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	NPT
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	1600 V
Current - Collector (Ic) (Max):	70 A
Power - Max:	500 W
Vce(on) (Max) @ Vge, Ic:	2.75V @ 15V, 70A
Current - Collector Cutoff (Max):	500 µA
Input Capacitance (Cies) @ Vce:	5.1 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

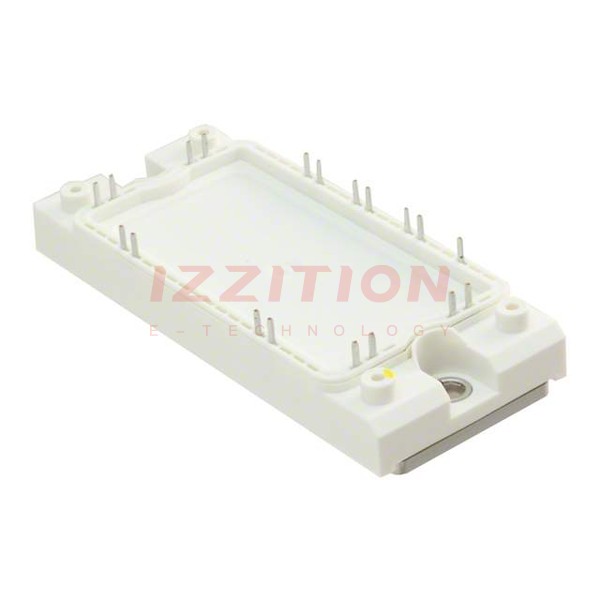

Infineon Technologies DDB6U134N16RRBOSA1
