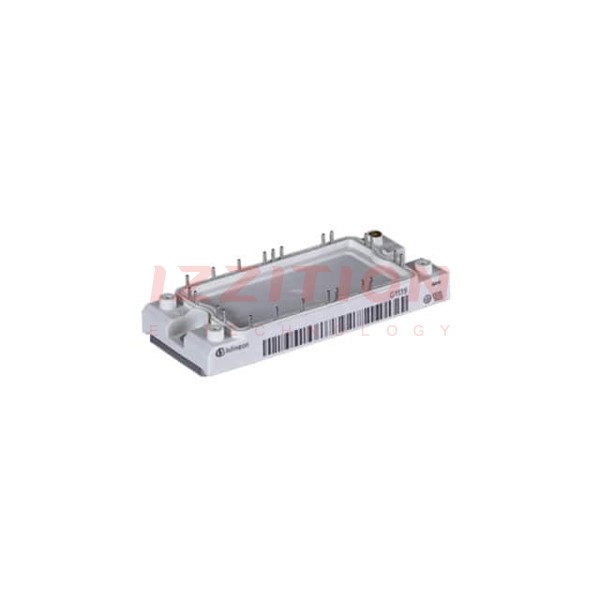

| Part Number | DDB6U100N16RRBOSA1 | DDB6U100N16RRBPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Not For New Designs |
| IGBT Type | - | - |
| Configuration | Single Chopper | Single Chopper |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 50 A | 50 A |
| Power - Max | 350 W | 350 W |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 20V, 50A | 3.2V @ 20V, 50A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 3.3 nF @ 25 V | 3.3 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -40°C ~ 150°C | 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | AG-ECONO2A |
