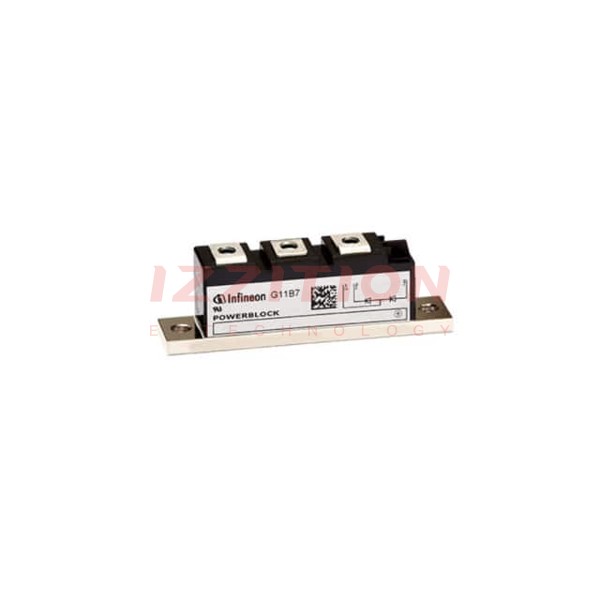

| Part Number | DD98N20KHPSA1 | DD98N25KHPSA1 | DD98N22KHPSA1 | DD98N24KHPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Last Time Buy | Active | Obsolete |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2000 V | 2500 V | 2200 V | 2400 V |
| Current - Average Rectified (Io) (per Diode) | 98A | 98A | 98A | 98A |
| Voltage - Forward (Vf) (Max) @ If | 1.53 V @ 300 A | 1.53 V @ 300 A | 1.53 V @ 300 A | 1.53 V @ 300 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 25 mA @ 2000 V | 25 mA @ 2500 V | 25 mA @ 2200 V | 25 mA @ 2400 V |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module |
