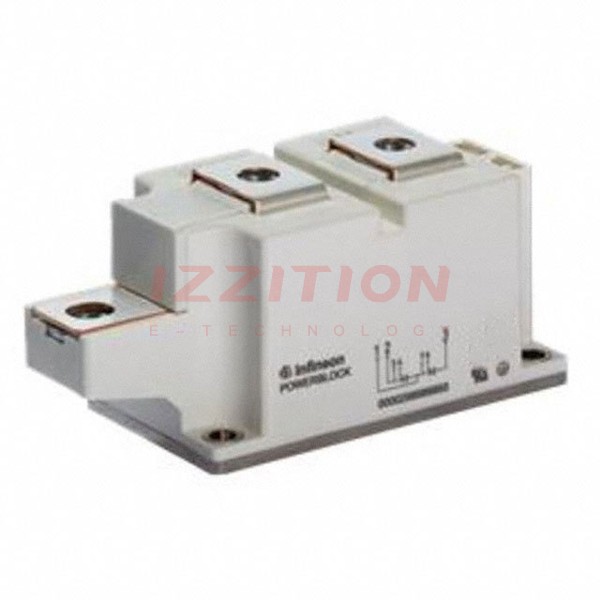

| Part Number | DD340N22SHPSA1 | DD390N22SHPSA1 | DD340N20SHPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2200 V | 2200 V | 2000 V |
| Current - Average Rectified (Io) (per Diode) | 330A | 390A | 330A |
| Voltage - Forward (Vf) (Max) @ If | - | 1.34 V @ 800 A | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 2200 V | 1 mA @ 2200 V | 1 mA @ 2000 V |
| Operating Temperature - Junction | -40°C ~ 135°C | -40°C ~ 125°C | -40°C ~ 135°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | BG-PB50SB-1 | BG-PB50SB-1 | BG-PB50SB-1 |
