Please send RFQ , we will respond immediately.

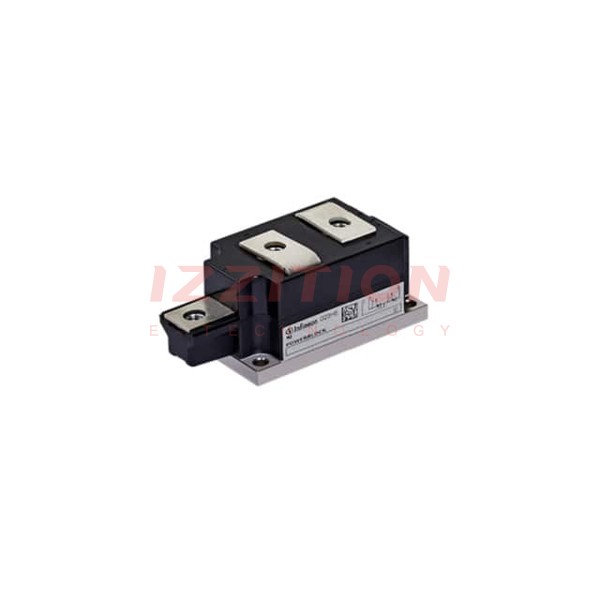

| Part Number | DD260N18KHPSA1 | DD260N18KKHPSA1 | DD260N12KHPSA1 | DD260N14KHPSA1 | DD260N16KHPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Obsolete | Last Time Buy | Obsolete | Active |
| Diode Configuration | 1 Pair Series Connection | - | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Standard | - | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1800 V | - | 1200 V | 1400 V | 1600 V |
| Current - Average Rectified (Io) (per Diode) | 260A | - | 260A | 260A | 260A |
| Voltage - Forward (Vf) (Max) @ If | 1.32 V @ 800 A | - | 1.32 V @ 800 A | 1.32 V @ 800 A | 1.32 V @ 800 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | - | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 30 mA @ 1800 V | - | 30 mA @ 1200 V | 30 mA @ 1400 V | 30 mA @ 1600 V |
| Operating Temperature - Junction | -40°C ~ 150°C | - | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | - | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | - | Module | Module | Module |
| Supplier Device Package | Module | - | Module | Module | Module |
