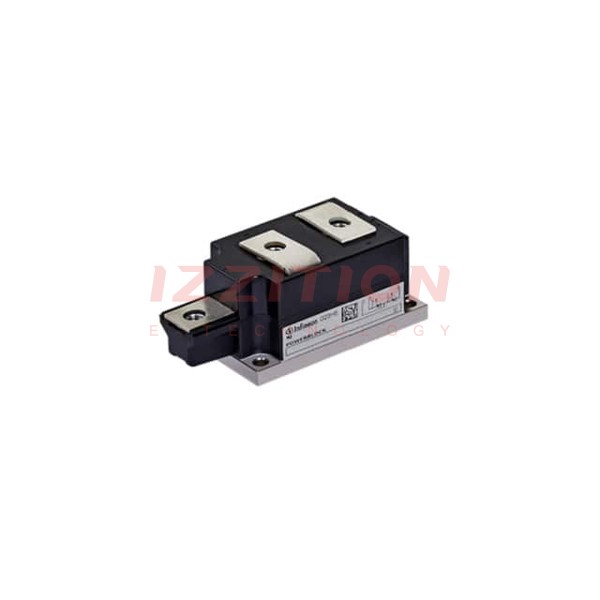

| Part Number | DD231N20KHPSA1 | DD261N20KHPSA1 | DD231N22KHPSA1 | DD231N24KHPSA1 | DD231N26KHPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Last Time Buy | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2000 V | 2000 V | 2200 V | 2400 V | 2600 V |
| Current - Average Rectified (Io) (per Diode) | 261A | 260A | 261A | 261A | 261A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 800 A | 1.42 V @ 800 A | 1.55 V @ 800 A | 1.55 V @ 800 A | 1.55 V @ 800 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 25 mA @ 2000 V | 40 mA @ 2000 V | 25 mA @ 2200 V | 25 mA @ 2400 V | 25 mA @ 2600 V |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module | Module |
