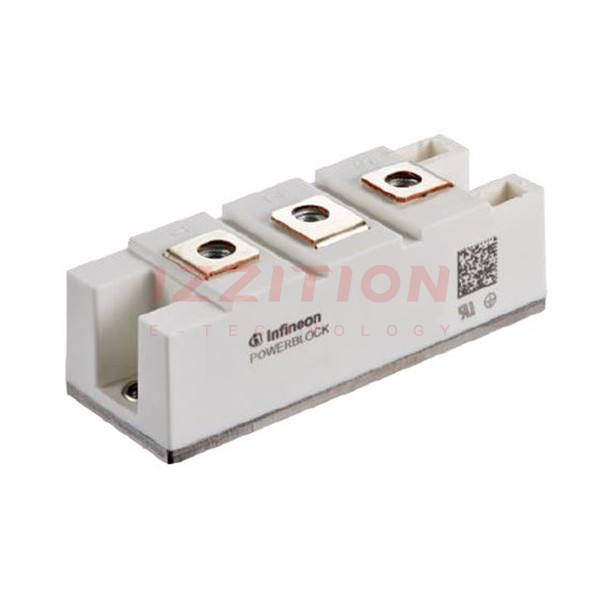

| Part Number | DD180N16SHPSA1 | DD180N18SHPSA1 | DD100N16SHPSA1 | DD170N16SHPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Active | Active |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1800 V | 1600 V | 1600 V |
| Current - Average Rectified (Io) (per Diode) | 192A | 226A | 130A | 165A |
| Voltage - Forward (Vf) (Max) @ If | 1.39 V @ 500 A | - | - | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | - | - |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 1600 V | 1 mA @ 1800 V | - | 9 mA @ 1600 V |
| Operating Temperature - Junction | -40°C ~ 125°C | -40°C ~ 135°C | - | 135°C (Max) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | Module | BG-PB34SB-1 | Module | BG-PB34SB-1 |
