Please send RFQ , we will respond immediately.

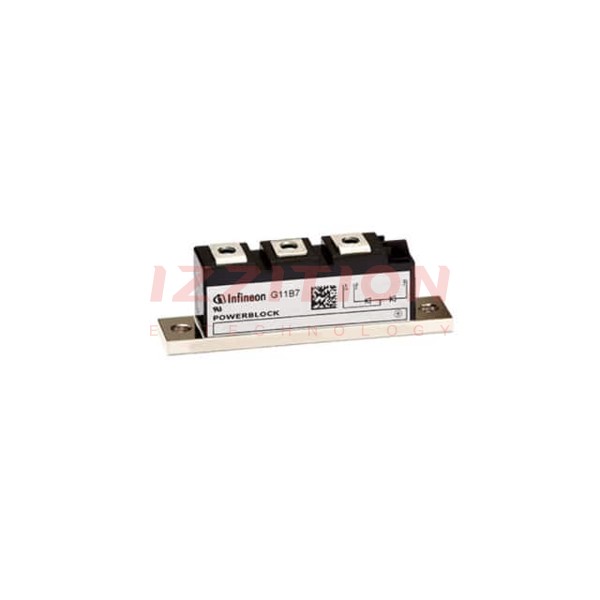

| Part Number | DD175N32KHPSA1 | DD175N34KHPSA1 | DD175N30KHPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 3200 V | 3400 V | 3000 V |
| Current - Average Rectified (Io) (per Diode) | 223A | 223A | 223A |
| Voltage - Forward (Vf) (Max) @ If | 2.05 V @ 600 A | 2.05 V @ 600 A | 2.05 V @ 600 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 20 mA @ 3200 V | 20 mA @ 3400 V | 20 mA @ 3000 V |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
