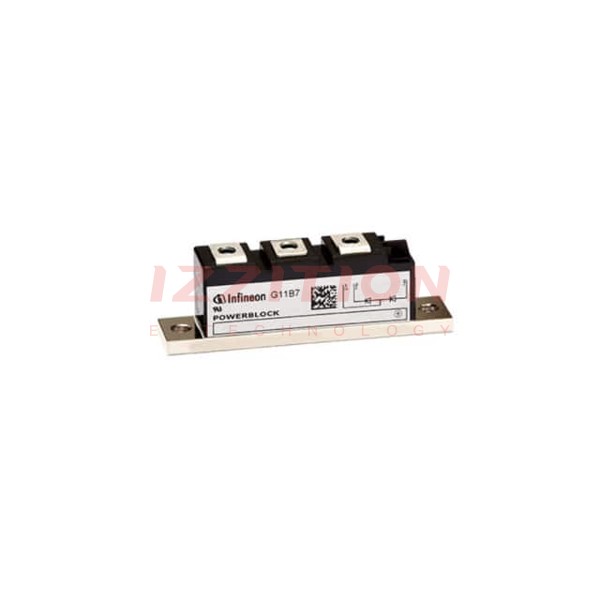

| Part Number | DD171N12KHPSA1 | DD171N16KHPSA1 | DD171N18KHPSA1 | DD171N12KKHPSA1 | DD171N14KHPSA1 | DD171N12KAHPSA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | - | 1 Pair Common Cathode | - |
| Diode Type | Standard | Standard | Standard | - | Standard | - |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1600 V | 1800 V | - | 1400 V | - |
| Current - Average Rectified (Io) (per Diode) | 171A | 171A | 171A | - | 171A | - |
| Voltage - Forward (Vf) (Max) @ If | 1.26 V @ 500 A | 1.26 V @ 500 A | 1.26 V @ 500 A | - | 1.26 V @ 500 A | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | - | Standard Recovery >500ns, > 200mA (Io) | - |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 20 mA @ 1200 V | 20 mA @ 1600 V | 20 mA @ 1800 V | - | 20 mA @ 1400 V | - |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | - | -40°C ~ 150°C | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | - | Chassis Mount | - |
| Package / Case | Module | Module | Module | - | Module | - |
| Supplier Device Package | Module | Module | Module | - | Module | - |
